crystal structure viewer

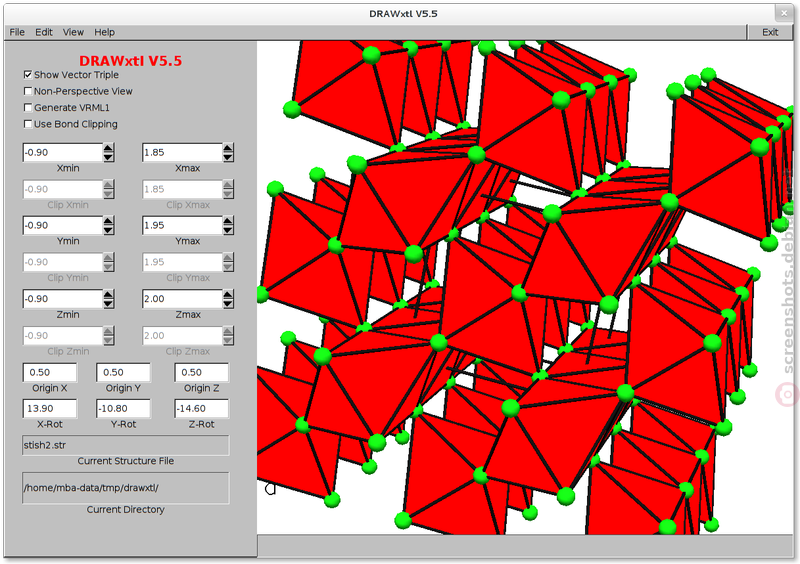

DescriptionDRAWxtl reads a basic description of the crystal structure, which includes unit-cell parameters, space group, atomic coordinates, thermal parameters or a Fourier map, and outputs a geometry object that contains polyhedra, planes, lone-pair cones, spheres or ellipsoids, bonds, iso-surface Fourier contours and the unit-cell boundary. Four forms of graphics are produced:
* an OpenGL window for immediate viewing
* the Persistence of Vision Ray Tracer (POV-RAY) scene language for
* the Virtual Reality Modeling Language (VRML) for dissemination
across the Internet
* a Postscript rendering of the OpenGL window for those who want
high-quality output but do not have POV-RAY installed.File formats DRAWxtl can read include CIF, FDAT, FullProf (pcr), GSAS, SCHAKAL, SHELX, DISCUS and WIEN2k.
