xdot

interactive viewer for Graphviz dot files

Description

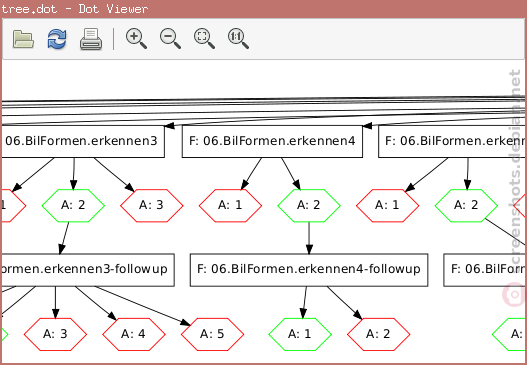

xdot is an interactive viewer for graphs written in Graphviz's dot language. It uses internally the graphviz's xdot output format as an intermediate format, and PyGTK and Cairo for rendering. xdot can be used either as a standalone application from command line, or as a library embedded in your Python 3 application.

Features:
 * Since it doesn't use bitmaps it is fast and has a small memory footprint.
 * Arbitrary zoom.
 * Keyboard/mouse navigation.
 * Supports events on the nodes with URLs.
 * Animated jumping between nodes.
 * Highlights node/edge under mouse.

Upload more screenshots

Please help extend the collection of screenshots. Just make a screenshot and upload it here. You don't need to register or anything.

Upload a screenshot

Hint: upload an image here from your clipboard with Ctrl-V


Homepage

https://github.com/jrfonseca/xdot.py
