caneda

Electronic Design Automation software focused on easy of use and portability

Description

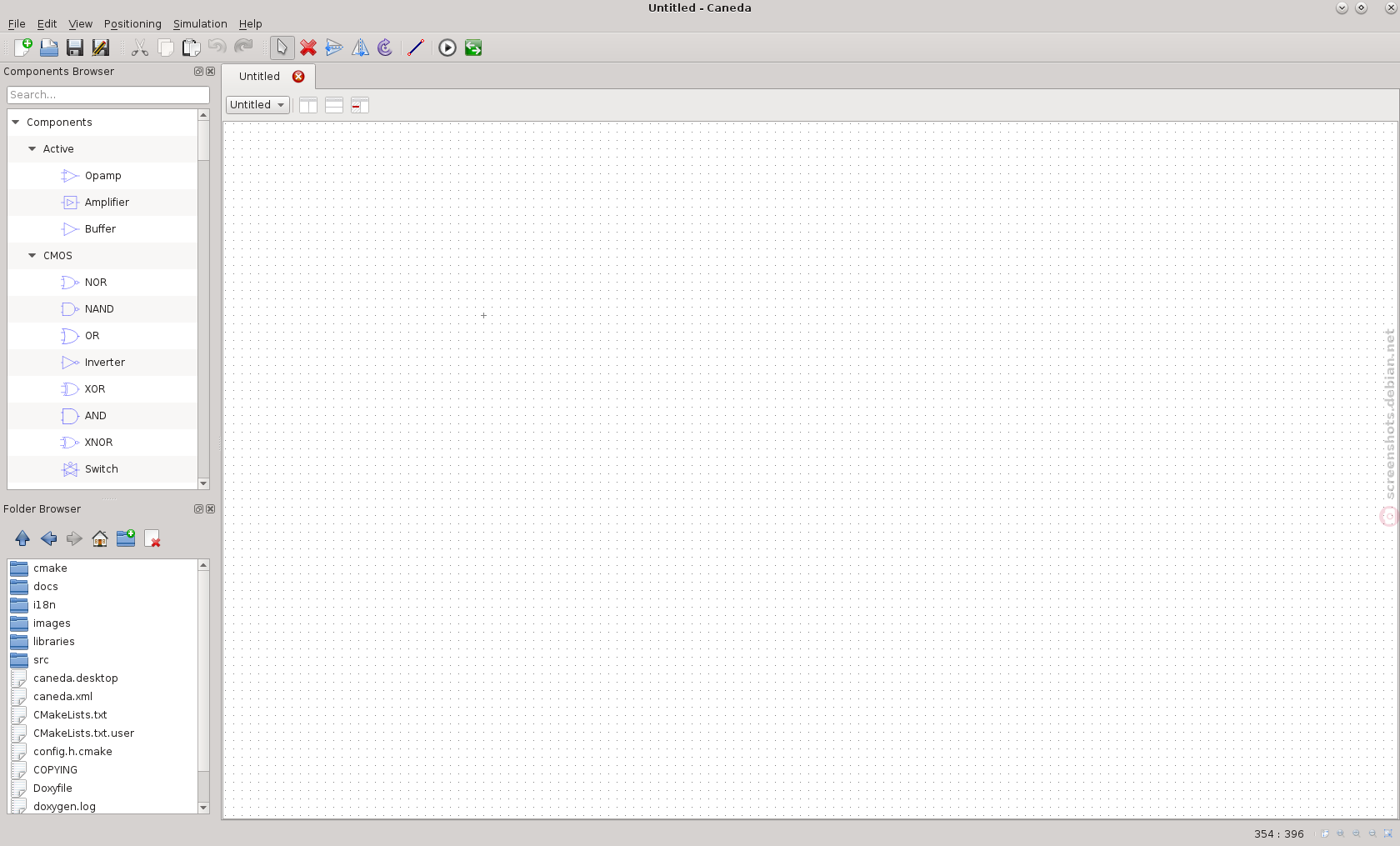

Caneda is an open source Electronic Design Automation (EDA) application focused on easy of use and portability. It's goal is to handle the complete design process from schematic capture, through simulation and into circuit layout and PCB.

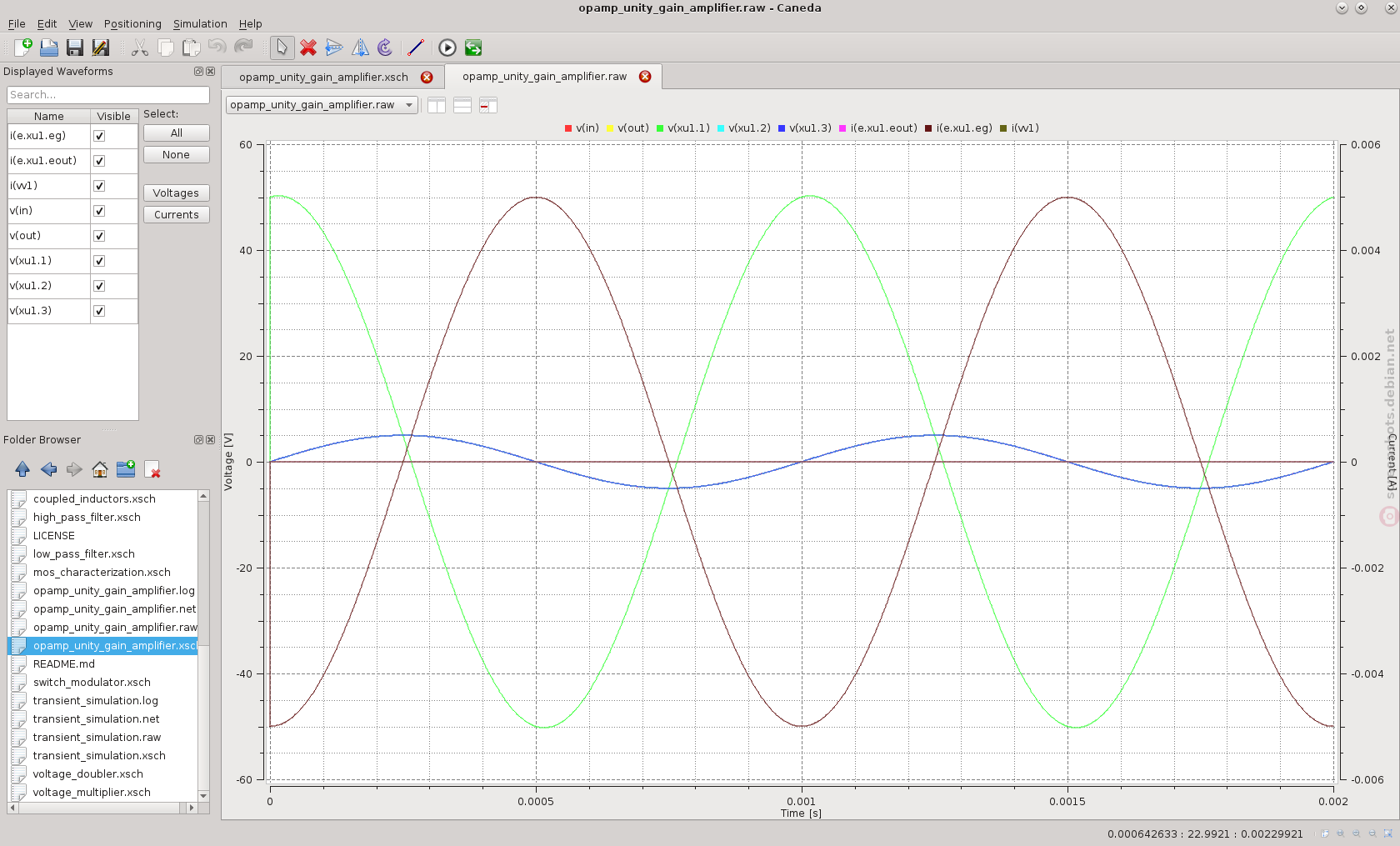

The software aims to support all kinds of circuit simulation types, e.g. DC, AC, S-parameter and harmonic balance analysis.

Upload more screenshots

Please help extend the collection of screenshots. Just make a screenshot and upload it here. You don't need to register or anything.

Upload a screenshot

Hint: upload an image here from your clipboard with Ctrl-V


Homepage

https://github.com/Caneda/Caneda
