gspiceui

Graphical user interface for gnucap and ngspice

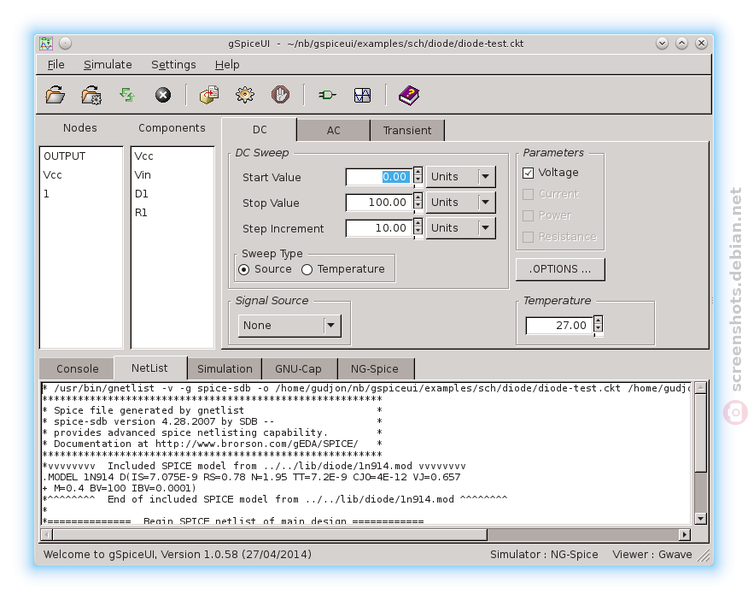

GSpiceUI, Main Window
GSpiceUI, Main Window
from version 1.0.58

Description

Gspiceui is a graphichal user interface for the two freely available electronic circuit engines: GNU-Cap and Ng-Spice. Current features are:
 * Import gschem schematic files using gentlist.
 * Load and parse circuit description (net list) files.
 * Provides a GUI interface for GNU-Cap OP, DC, AC and Transient analyses and
generates appropriate simulator commands based on user input.
 * Provides a GUI interface for Ng-Spice DC, AC and Transient analyses and
generates appropriate simulator commands based on user input.
 * The raw output may be viewed for any processes initiated by gspiceui.
