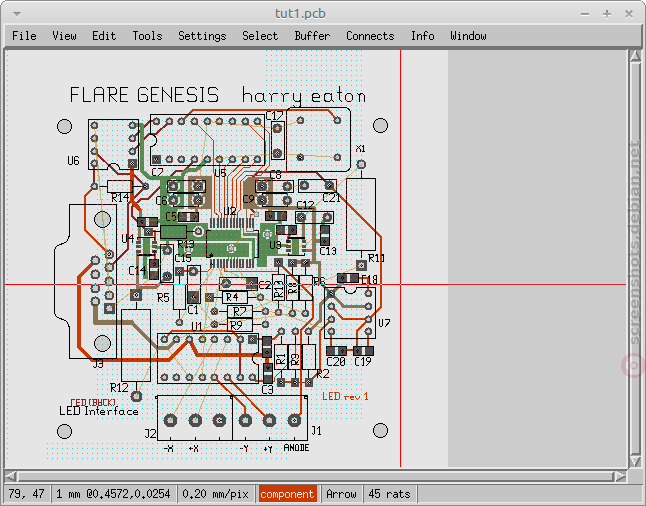

pcb-lesstif
printed circuit board (pcb) design program - LessTif interface

from version 20100929-2
If you think this screenshot does not meet the guidelines or is misleading or not useful then please report it so that the moderators can review it. Just let us know why you think the screenshot should get removed:
Description
PCB is an interactive printed circuit board editor for the X11 window system. PCB includes a rats nest feature, design rule checking, and can provide industry standard RS-274-X (Gerber), NC drill, and centroid data (X-Y data) output for use in the board fabrication and assembly process. PCB offers high end features such as an autorouter and trace optimizer which can tremendously reduce layout time. This package contains the LessTif user-interface for pcb.Homepage
Statistics
2011 other people were interested in this package here. The newest known version of this software is 1:4.0.2-4 (Information last updated about 3 hours ago.)
