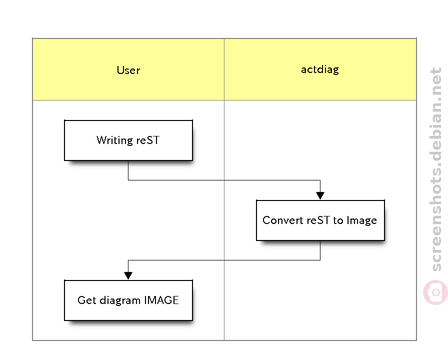

generate activity-diagram image file from spec-text file
DescriptionGenerate activity-diagram from dot like text with multilingualization for node-label. But this supports utf-8 only. It is able to embed to sphinx with using python-sphinxcontrib-actdiag.
