veroroute

Veroboard, Perfboard, and PCB layout and routing application

Description

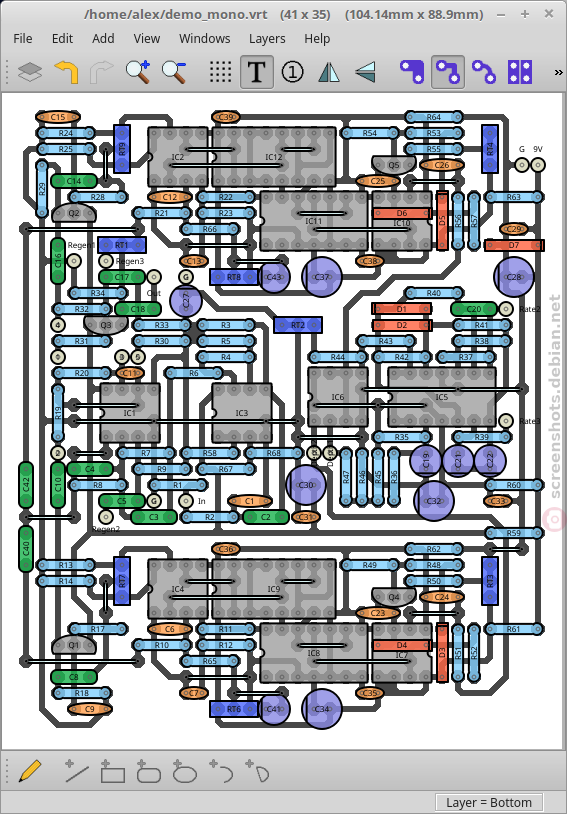

Software for producing Veroboard (stripboard), Perfboard, and simple 1-layer or 2-layer PCBs. Automatically prevents short circuits and checks for open circuits. It can import netlist from a TinyCAD, gEDA, or KiCad schematic, or specify the netlist graphically. It exports Gerber for simple 1-layer or 2-layer PCB manufacture.

Upload more screenshots

Please help extend the collection of screenshots. Just make a screenshot and upload it here. You don't need to register or anything.

Upload a screenshot

Hint: upload an image here from your clipboard with Ctrl-V


Homepage

https://sourceforge.net/projects/veroroute/


Install this software package

If the package is available for the distribution you are currently using on your computer then install the software by clicking on…

Install veroroute
