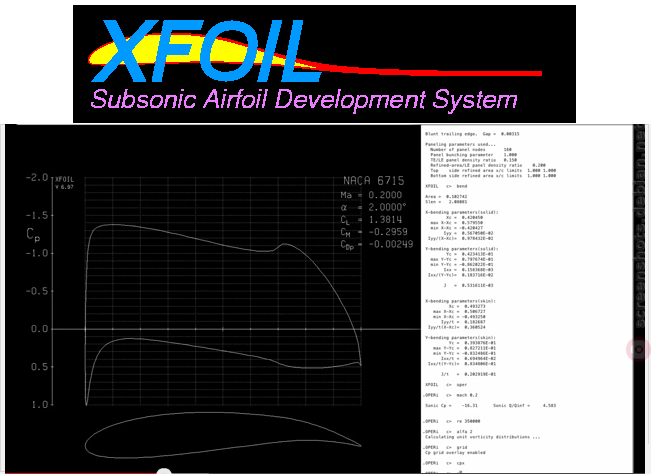

program for the design and analysis of subsonic airfoils
DescriptionXFOIL is an interactive program for the design and analysis of subsonic isolated airfoils. It consists of a collection of menu-driven routines which perform various useful functions such as:
- Viscous (or inviscid) analysis of an existing airfoil
- Airfoil design and redesign by interactive specification of
a surface speed distribution via screen cursor or mouse
- Airfoil redesign by interactive specification of new geometric
- Blending of airfoils
- Drag polar calculation with fixed or varying Reynolds and/or
- Plotting of geometry, pressure distributions, and polars
