engauge-digitizer

interactively extracts numbers from bitmap graphs or maps

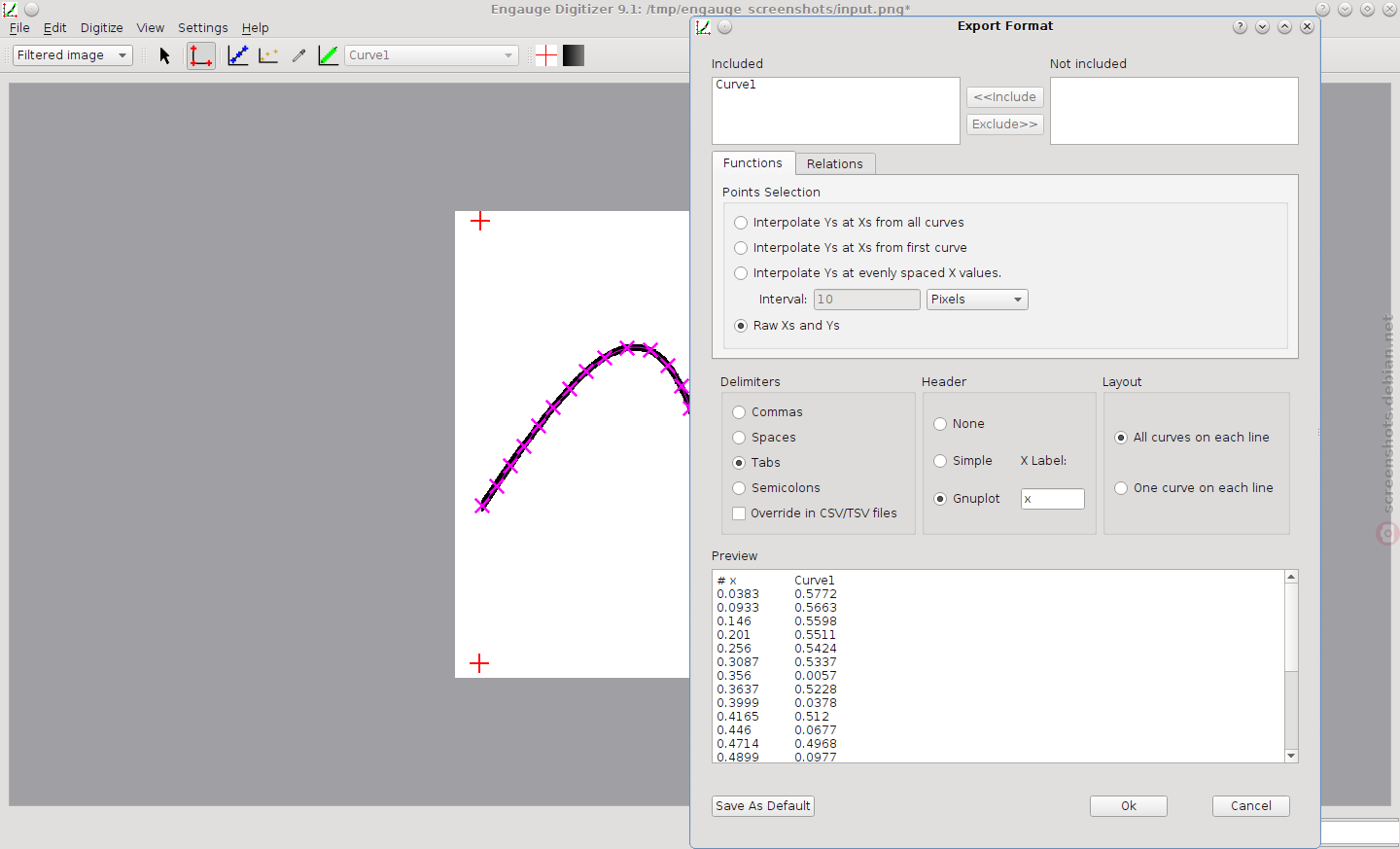

Export window
Export window
from version 8.3-1

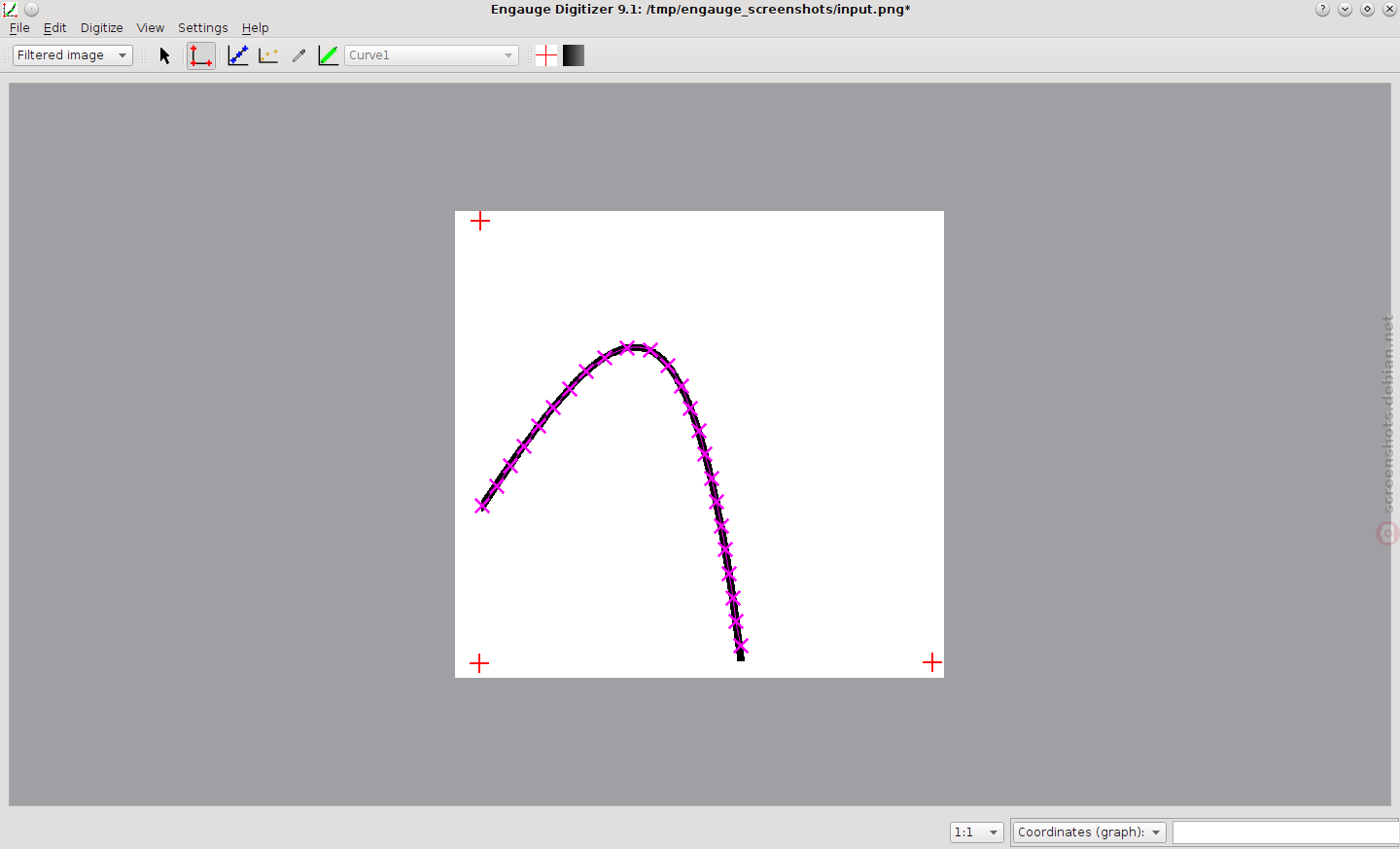

Filtered curve
Filtered curve
from version 8.3-1

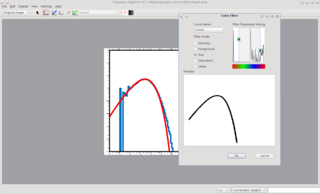

Color filter
Color filter
from version 8.3-1

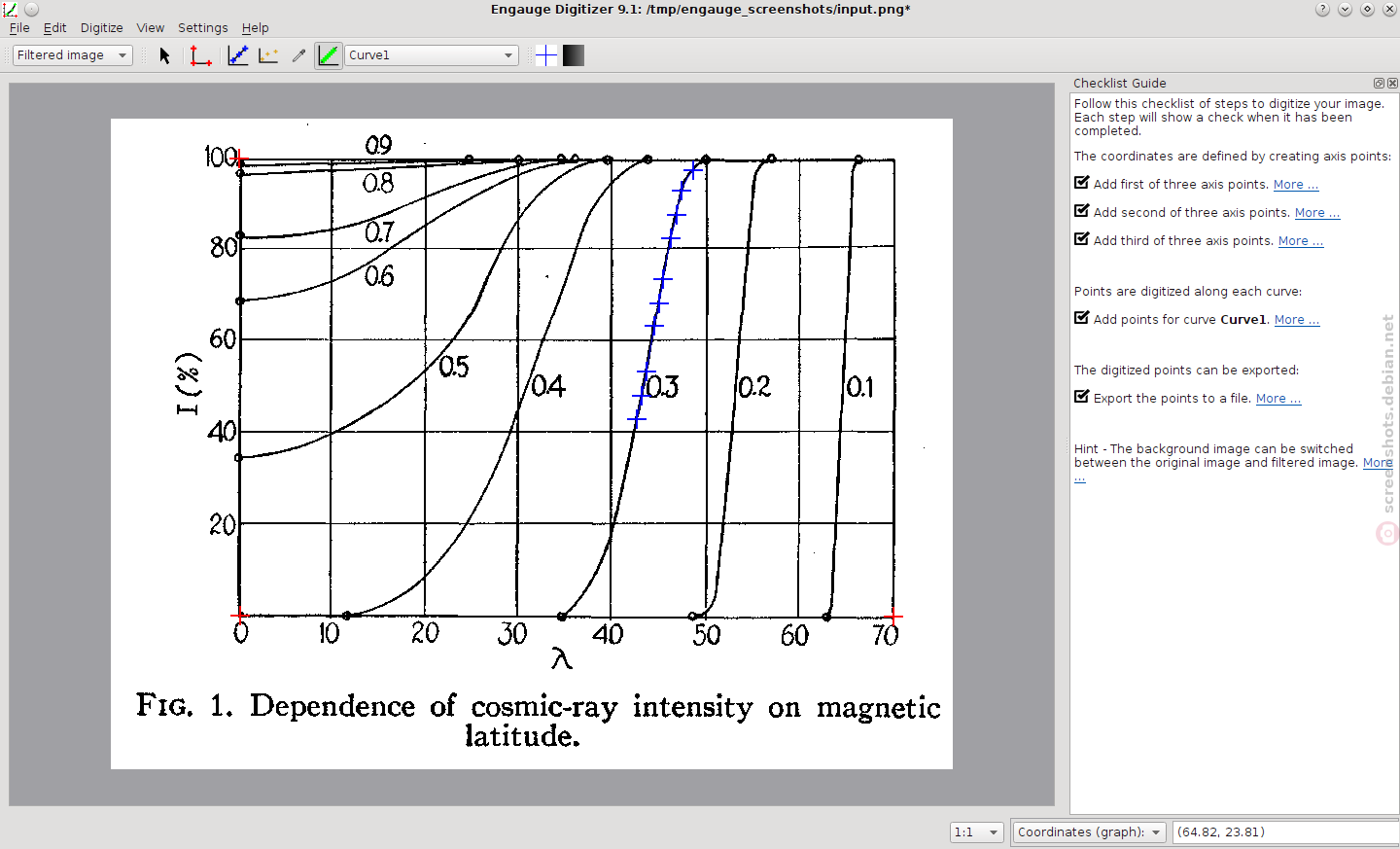

Digitize curve
Digitize curve
from version 8.3-1

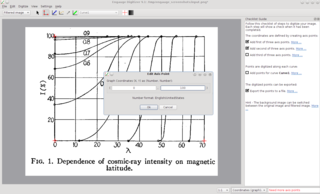

Edit axis point
Edit axis point
from version 8.3-1

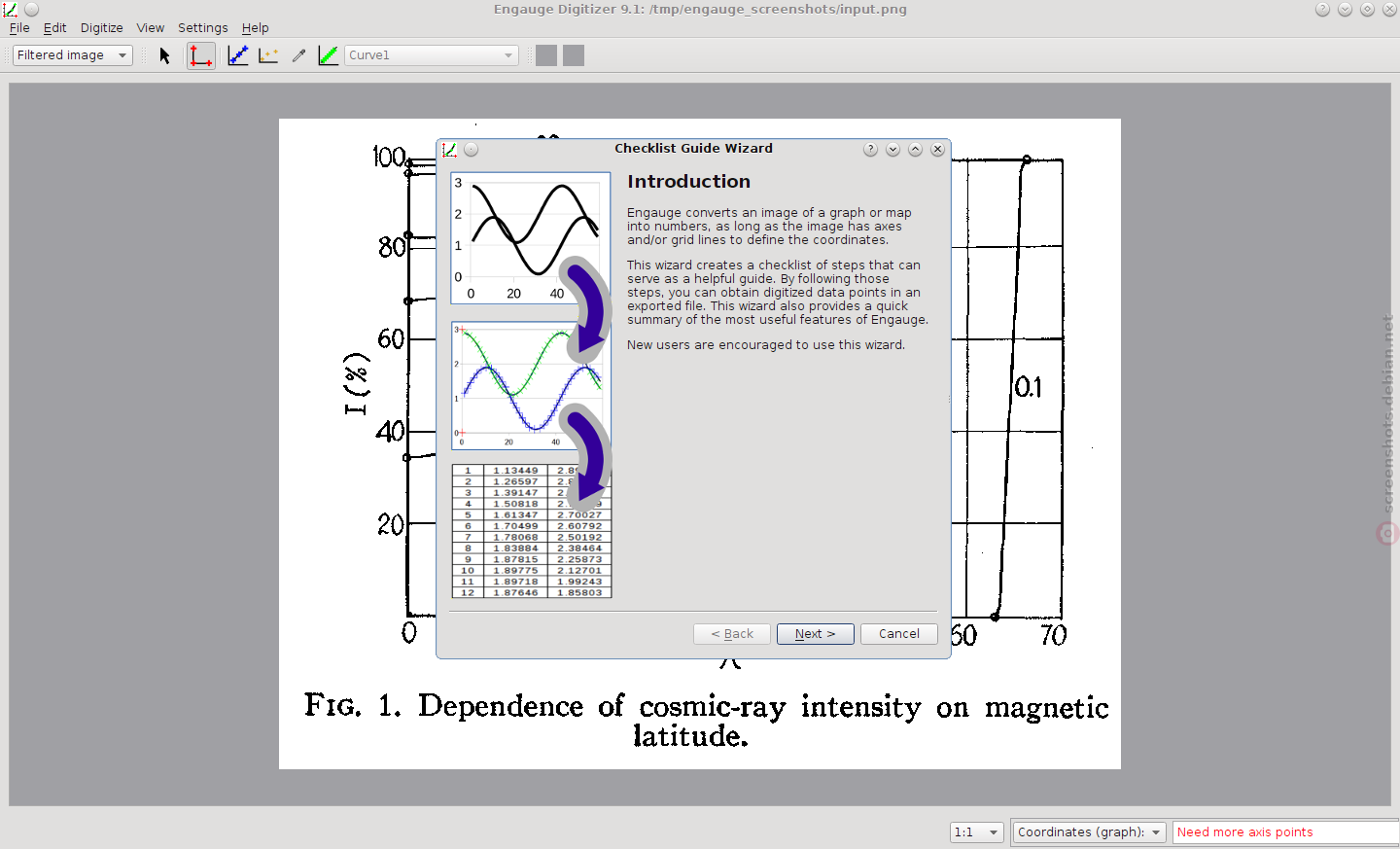

Import Wizard
Import Wizard
from version 8.3-1

Description

The Engauge Digitizer tool assists in interactively extracting numbers from images of graphs. Conceptually, it is thus the opposite of a graphing tool that converts data points to graphs. It provides assistance in enhancing the image quality and matching the data points. Engauge Digitizer is used by individuals such as grad students and researchers as well engineers and employees in large government and commercial organizations for processing single files but also managing databases of thousands of image files.

Features of Engauge Digitizer include:
   * Automatic grid line removal
   * Automatic point and axis matching
   * Automatic curve tracing
   * Image processing for separating important details from background
     information
   * A wizard providing an interactive tutorial to explain the basic steps
   * Multiple coordinate systems in the same image can be digitized in
     advanced mode
   * Cubic spline interpolation between points gives more accurate curves with
     fewer points
   * Handling of Cartesian, polar, linear and logarithmic graphs
   * Support for drag-and-drop and copy-and-paste
   * Context sensitive help, user manual and tutorials explaining every
     feature
   * Preview windows to give immediate feedback while modifying settings
   * Automated line and point extraction to rapidly digitizes data

Upload more screenshots

Please help extend the collection of screenshots. Just make a screenshot and upload it here. You don't need to register or anything.


Homepage

http://markummitchell.github.io/engauge-digitizer
